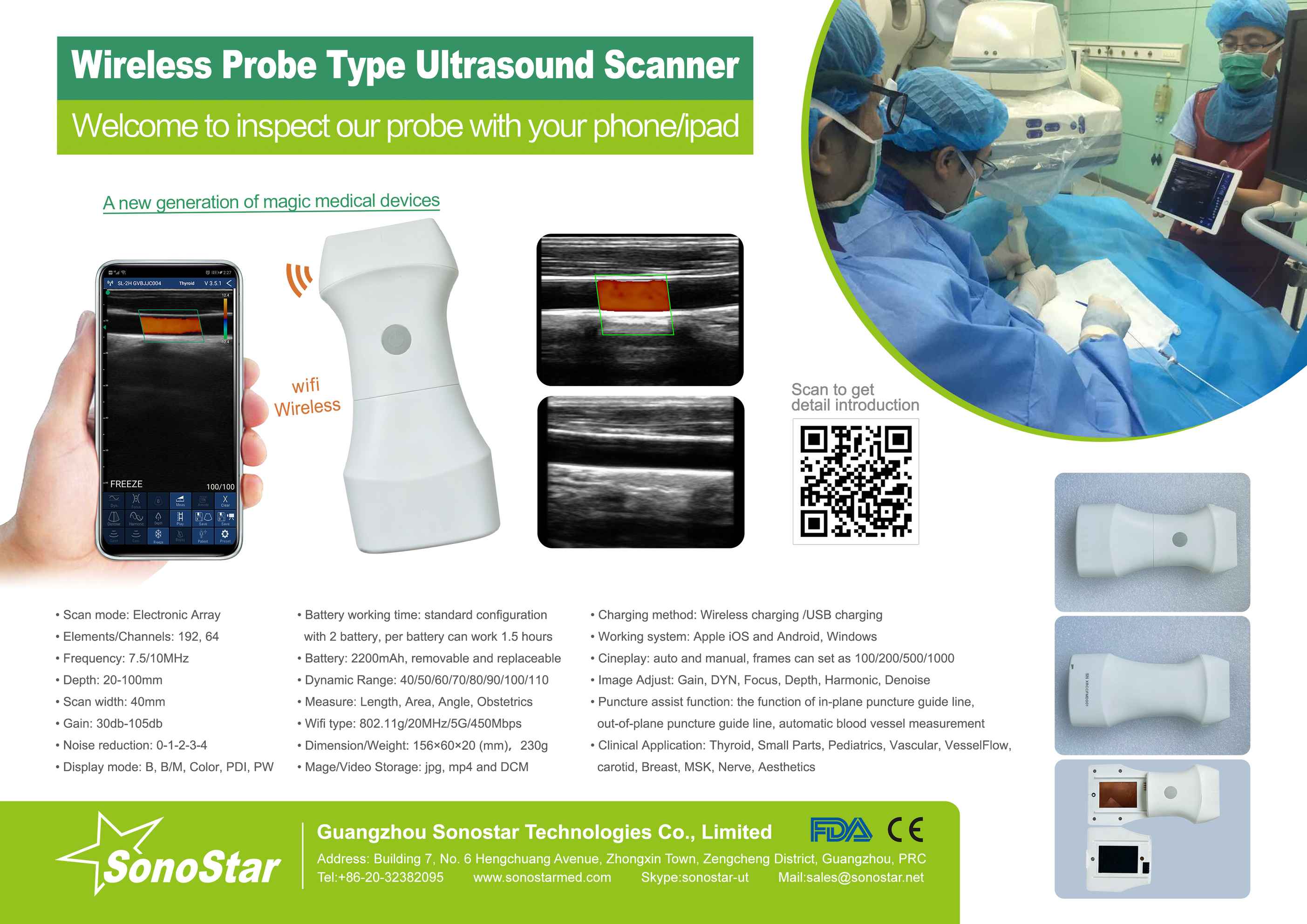

9L

9L Pro

• Elements: 192

• Channels: 64

• Frequency: 7.5MHz/10.0MHz,

• Depth: 20/40/60/100mm,

• Width: 40mm

• Battery: 2200mAh, Removable and replaceable

• Size: 156mm×60mm×20mm

• Weight: 230g

• Image/Video Storage: jpg, mp4 and DCM

• Battery working time: standard configuration with 2 battery, per battery can work 1.5 hours

• Charging method: Wireless charging

• Display mode: B, B/M, Color, PDI, PW

• Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

• Measure: Length, Area, Angle, Obstetrics

• Wifi type: 802.11g/20MHz/5G/450Mbps

• Working system: Apple iOS and Android, Windows

• Puncture assist function: the function of in-plane puncture guide line,

  out-of-plane puncture guide line, automatic blood vessel measurement

>>Catalog Download
