5CPL

5CPL Pro

5CPL Plus

Feature:

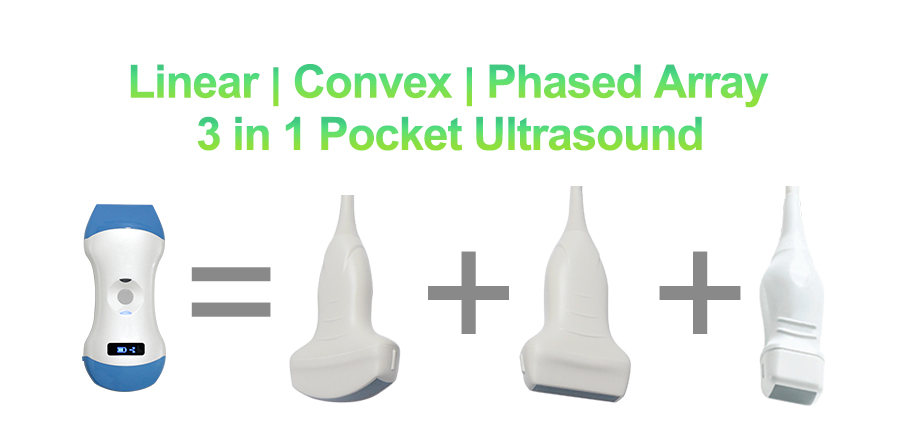

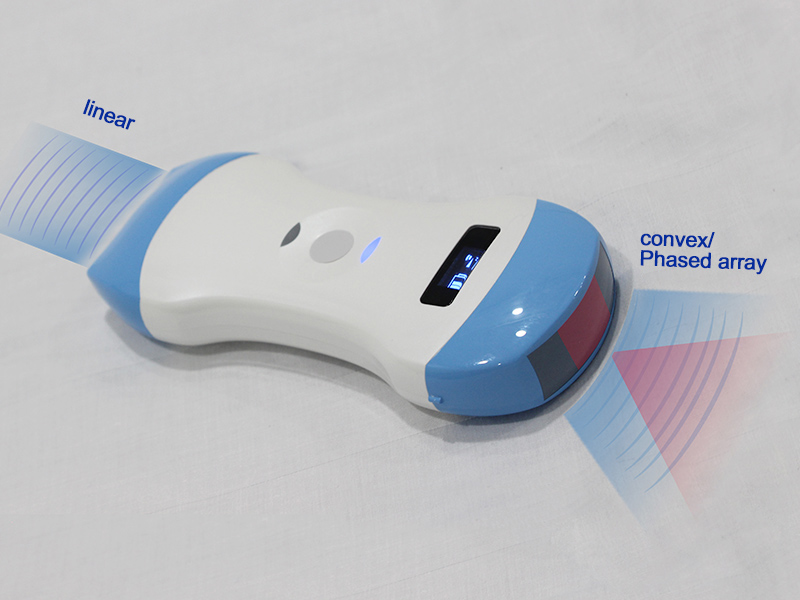

• Convex+linear+phased array 3 in 1

• Advanced digital  imaging technology, clear image

• High cost-effective

• Wireless connectivity, wireless charging, easy to operate

• Small and light,easy to carry

• Applicable in emergency, clinic, outdoor and vet inspection

• Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing

• Free software, no didden fees, and unlimited users

• Different APP for IOS/Android/Windows system

• APP with Chinese, English, Italy, Spain, Russian, German,Portuguese(Brazil)

Specifications:

• Frequency: Convex3.2MHz/5MHz, Phasedarray probe 2.5MHz/5MHz, Linear probe 7.5MHz/10.0MHz

• Elements: 128

• Channels: 32

• Display Depth: Convex 90/160/220/305mm, Phasedarray90/120/140/160, Linear 20/40/60/80mm

• Scan angle and width: convex 45°, Phasedarray 80°,  linear 40mm

• Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

• Puncture assist function: the function of in-plane puncture guide line,

  out-of-plane puncture guide line, automatic blood vessel measurement,

  and the enhancement function of needle point development.

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Cineplay: auto and manual, frames can set as 100/200/500/1000

• Measure: Length, Area, Angle, Obstetrics

• Battery working time: 2 hours

• Charge: by wireless charger, 2 hours

• Dimension: 156×60×20mm

• Weight: 230g

• Wifi type: 802.11g/20MHz/5G/450Mbps

• Working system: Apple iOS and Android, Windows

Configuration:

Standard Configuration：Wireless Probe Type Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc

Optional：Carrying Bag, Aluminium Suitcase, Stainless Steel Puncture Guide, Wireless Power Bank, Android or iOS Phone/Tablet, Tablet Bracket, Trolley

>>Catalog Download
